Standard Terminal Setup HPC3

EARLY ACCESS ONLY

See Known Issues HPC3 for more info.

Prerequisite

First time setup

The login process can be simplified significantly with a few easy configurations.

  1. In a new local terminal run; mkdir -p ~/.ssh/sockets this will create a subdirectory in your home directory to store socket configurations.

  2. Open your ssh config file (e.g. nano ~/.ssh/config to open with the text editor nano) and add the following (replacing username with your username):

    Host hpc3lander
User cwal219
HostName lander.test.nesi.org.nz

Host hpc3login
User cwal219
Hostname login01.hpc.nesi.org.nz
ProxyCommand ssh -W %h:%p hpc3lander

    Close and save with ctrl x, y, Enter

  3. Ensure the permissions are correct by running chmod 600 ~/.ssh/config.

  4. Run the command.

    ssh hpc3login

  5. You will be prompted to approve host authenticity

    The authenticity of host 'lander.test.nesi.org.nz (163.7.144.68)' can't be established.
ECDSA key fingerprint is SHA256:############################################.
ECDSA key fingerprint is MD5:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##.
Are you sure you want to continue connecting (yes/no)?

    Type yes and Enter

  6. You will be presented with a link.

    Authenticate at https://iam.nesi.org.nz/realms/public/device?user_code=XXXX-XXXX and press ENTER.

    Depending on the terminal used, you may have to hold ctrl when clicking to follow the link.

  7. Select your institution, you will be prompted to provide your login details.

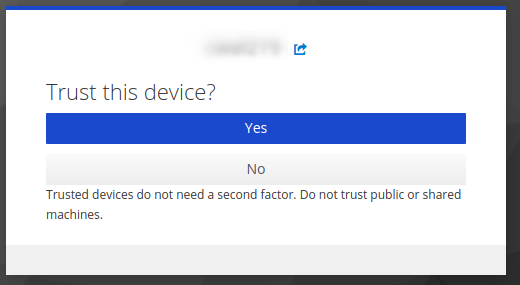

  8. Click 'Yes' when prompted to trust this device. This will allow you to log in without 2FA for 7 days. The name can be anything. alt text.

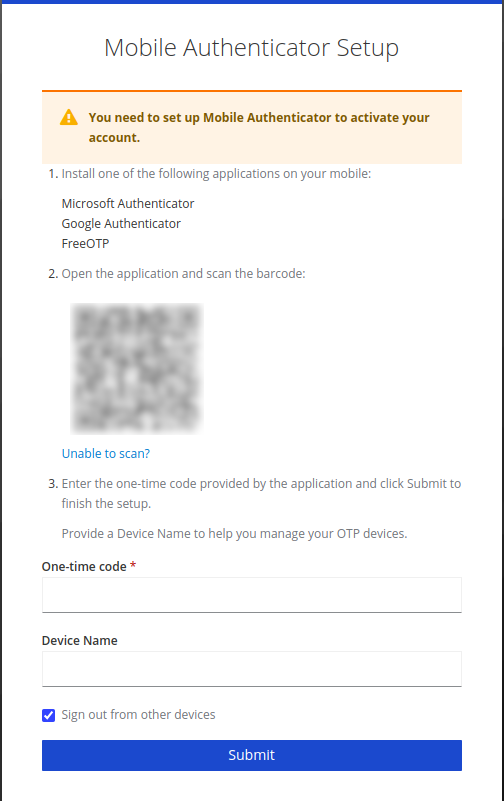

  9. Scan the QR code with your authenticator app. Then enter the six digit code provided. You may give your device a name.

    alt text

  10. Return to your terminal, and press enter.

Subsiquent log in

  1. ssh hpc3login
  2. Follow the link.
  3. You may be prompted for your 6 digit code.
  4. Return to your terminal, and press enter.
