Standard Terminal Setup

Prerequisite

Warning

The following instructions may not work when using any non-standard terminal client.

First time setup

The login process can be simplified significantly with a few easy configurations.

  1. In a new terminal on your local machine run; mkdir -p ~/.ssh/sockets this will create a subdirectory in your home directory to store socket configurations.

  2. Open your ssh config file (e.g. nano ~/.ssh/config to open with the text editor nano) and add the following (replacing username with your username):

    Host *
    ControlMaster auto
    ControlPath ~/.ssh/sockets/ssh_mux_%h_%p_%r
    ControlPersist 1

Host lander
    User username
    HostName lander.hpc.nesi.org.nz
    ForwardX11 yes
    ForwardX11Trusted yes
    ServerAliveInterval 300
    ServerAliveCountMax 2

Host mahuika
    User username
    Hostname login.hpc.nesi.org.nz
    ProxyCommand ssh -W %h:%p lander
    ForwardX11 yes
    ForwardX11Trusted yes
    ServerAliveInterval 300
    ServerAliveCountMax 2
    IdentityFile ~/.ssh/mahuika_key

    Close and save with ctrl x, ctrl y, Enter

    Warning

    MobaXterm does not allow the use of sockets. If you are using MobaXterm please exclude the first four lines from your own ssh config.

  3. Ensure the permissions are correct by running;

    chmod 600 ~/.ssh/config

  4. You can now log into the cluster, run the command.

    ssh mahuika

  5. You will be prompted to approve host authenticity

    The authenticity of host 'lander.hpc.nesi.org.nz (163.7.144.68)' can't be established.
ECDSA key fingerprint is SHA256:############################################.
ECDSA key fingerprint is MD5:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##.
Are you sure you want to continue connecting (yes/no)?

    Type yes and Enter

  6. You will be presented with a link.

    Authenticate at https://iam.nesi.org.nz/realms/public/device?user_code=XXXX-XXXX and press ENTER.

    Depending on the terminal used, you may have to hold ctrl when clicking to follow the link.

  7. Select your institution, you will be prompted to provide your login details.

  8. You are now asked about your current device: do you trust it or not?

    alt text.

    • Click No: If this device is a shared computer (e.g. university computer where you have to delete cookies) or if you are using incognito or private windows. This means that you will need to enter your 6-digit code every time you log.
    • Click Yes: If this your own device and you are using a secure network. This will allow you to log in without additional authentication for 7 days.

    If you have trusted your device, you have to enter a name for this device. This name can be anything you want, but it must be unique (e.g. you cannot have two devices with the same name).

  9. Scan the QR code with your authenticator app. Then enter the 6-digit code provided.

    alt text

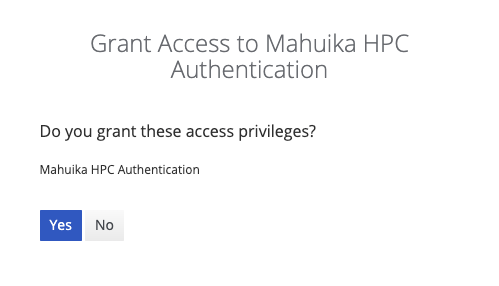

  10. You are now asked to confirm that you initiated this authentication request. This step helps prevent remote phishing by ensuring the process was started by you.

    alt text.

    • Click No: if you did not request access to the advanced computing system.
    • Click Yes: if you have been following this process from the beginning.

    You will be asked to confirm each time to ensure you initiated the sequence and to maintain your security.

  11. Return to your terminal, and press enter.

Double Authentication

You will need to complete the authentication proccess twice, this can be avoided by following the steps outlined in Adding an SSH Key.

Adding a SSH key (optional)

Generating a SSH key on the cluster removes one of the login prompts, this also works when opening a terminal through OnDemand.

  1. In a terminal on the HPC (either through SSH or OnDemand), run the command;

    mkdir -p ~/.ssh && ssh-keygen -qf ~/.ssh/mahuika_key -N "" && cat ~/.ssh/mahuika_key.pub >> ~/.ssh/authorized_keys

    This will generate an ssh key named mahuika_key, and add it to the list of authorised keys.

    OnDemand users

    If you only plan on connecting to the cluster via OnDemand, you can stop here. The following steps are only relevent if using ssh on a local machine.

  2. In a terminal on your local machine run the command;

    scp mahuika:~/.ssh/mahuika_key.pub ~/.ssh/

    This will copy the public key from the cluster to your local machine.

  3. If you set up your ssh config recently, you may already have this line added.

    Open the file ~/.ssh/config on your local machine, for example;

    nano ~/.ssh/config

    And add the line IdentityFile ~/.ssh/mahuika_key under the host mahuika.

    The mahuika host entry should look like this

    Host mahuika
    User username
    Hostname login.hpc.nesi.org.nz
    ProxyCommand ssh -W %h:%p lander
    ForwardX11 yes
    ForwardX11Trusted yes
    ServerAliveInterval 300
    ServerAliveCountMax 2
    IdentityFile ~/.ssh/mahuika_key

You should now be able to login with only a single authentication prompt.

Warning

Do not re-use the private key mahuika_key on other devices. Your home directory on the cluster is accessible by mahuika admins.

Subsequent log in

  1. ssh mahuika
  2. Follow the link.
  3. You may be prompted for your 6 digit code.
  4. Return to your terminal, and press enter.

How-to Video

Watch a demo.
